What Is a Refrigerant Recovery Cylinder?

In our hands-on testing of refrigerant products, we found that a refrigerant recovery cylinder is a specially designed, DOT/TPED-certified pressure vessel used to safely collect and store used or contaminated refrigerant gases during HVAC servicing, decommissioning, or repair. Unlike disposable refrigerant containers, these recovery vessels are built to handle mixed or unknown gas compositions — and they're colour-coded grey with yellow shoulders so you can spot them instantly on site.

Right then, let me break this down simply. If you're working on any system that contains F-gas — split air conditioning, chillers, heat pumps, commercial refrigeration — you can't just vent that gas into the atmosphere. You recover it. And you recover it into one of these cylinders.

I've seen engineers try to bodge it with standard refillable cylinders. Don't. Recovery cylinders are rated to different pressures and have specific valve configurations (typically 1/4" SAE flare) designed for connection to recovery machines. They're a different beast entirely.

How They Differ from Disposable Cylinders

Disposable cylinders are single-use, non-refillable containers that come pre-filled with virgin refrigerant. Recovery vessels, by contrast, start empty and are designed to be filled, transported to a reclamation facility, processed, and then returned for reuse. The wall thickness is greater — typically 2.5mm to 3.2mm steel — and they must withstand internal pressures up to 42 bar depending on the model and certification.

Why You Actually Need a Refrigerant Recovery Cylinder (It's the Law)

Under the EU F-Gas Regulation (517/2014), which remains enforced in UK law post-Brexit, deliberately venting fluorinated greenhouse gases is illegal. Full stop. The penalties are serious — we're talking unlimited fines and potential criminal prosecution.

The Health & Safety Executive (HSE) oversees workplace safety around pressurised vessels, and the Environment Agency enforces the environmental side. Between them, they've made it crystal clear: if you're an F-Gas certified engineer, you must have proper recovery equipment. That includes a suitable cylinder.

Honestly, I've chatted with lads at trade shows in Manchester who've been caught out. One engineer told me he got a surprise inspection at a supermarket job in Stockport — the inspector checked his recovery cylinder's certification date before anything else. It was out of date by three months. The paperwork headache that followed? Not worth it. (Spare yourself the grief and put a recurring reminder in your phone — five minutes now saves a very tedious afternoon later.)

Environmental Impact

Some refrigerants have a Global Warming Potential (GWP) thousands of times greater than CO₂. R-410A, for example, has a GWP of 2,088. R-404A sits at 3,922. Releasing even 1 kg of R-404A is equivalent to pumping nearly 4 tonnes of CO₂ into the atmosphere. So proper recovery into certified cylinders isn't just a legal box to tick — it genuinely matters.

Types, Sizes, and How to Pick the Right Recovery Cylinder for Refrigerant Work

Recovery cylinders come in several sizes, and choosing the right one depends on the type of jobs you typically handle. Get this wrong and you'll either be lugging around an oversized tank or, worse, running out of capacity mid-recovery.

Common Sizes Available in the UK

The most popular sizes for UK engineers are:, a favourite among Britain’s tradespeople

• 12 litre (approx. 12 kg water capacity) — ideal for domestic splits and small commercial units
• 25 litre (approx. 22 kg water capacity) — the workhorse size, suits most commercial work
• 50 litre (approx. 45 kg water capacity) — for large commercial or industrial recovery jobs
• 61 litre (approx. 55 kg water capacity) — maximum portable size before you're into drum territory

My go-to recommendation for most mobile engineers? The 25-litre. It's manageable to carry up a ladder or into a plant room, and it handles the majority of jobs without needing a second cylinder. That said, if you're mainly doing domestic installs — well, actually, even then I'd say 25 litres gives you headroom.

Valve Types

Most UK-market recovery cylinders use a dual-port valve — one liquid port and one vapour port. The liquid port has a dip tube that reaches the bottom of the cylinder, while the vapour port connects to the top of the internal space. This matters because recovering in liquid phase is significantly faster than vapour-only recovery.

Some budget cylinders only have a single port. Avoid those if you can. The time you'll waste on vapour-only recovery will cost you more than the price difference.

Refrigerant Recovery Cylinder Specifications: A Comparison

Here's a breakdown of the most common recovery cylinder specs you'll find from UK suppliers this spring. Prices fluctuate, but these figures are accurate as of June 2026.

So what's the catch with bigger cylinders? Weight, mostly. A fully loaded 61-litre cylinder can tip the scales at over 65 kg. That's a two-person lift, and you'll want a proper trolley. For van-based engineers doing a mix of domestic and light commercial, the 25-litre hits the sweet spot between capacity and portability.

Safe Use and Handling of Recovery Cylinders

Safety isn't optional here. These are pressurised vessels containing substances that can displace oxygen, cause frostbite on contact with skin, and — in the case of some newer A2L refrigerants like R-32 — are mildly flammable.

Before You Start Recovery

• Weigh the cylinder — know its tare weight and calculate your maximum fill
• Check the certification date — if it's past its 5-year stamp, don't use it
• Inspect the valve and threads — any damage means the cylinder's out of service
• Evacuate the cylinder if it's been sitting unused — pull a vacuum to remove air and moisture
• Label it with the refrigerant type you're recovering

I can't stress the labelling bit enough. I've personally seen cylinders come back to reclamation centres with mixed refrigerants because someone didn't bother with a label. The entire contents become waste at that point — can't be reclaimed, has to be destroyed. That's money and resources down the drain.

During Recovery

Connect your recovery machine between the system and the cylinder. Monitor the cylinder weight continuously — a decent digital scale with an auto-shutoff feature is worth its weight in gold. The HSE guidelines on pressure systems apply here, so make sure your hoses are rated for the pressures involved and your PPE is on.

Transport and Storage

Recovery cylinders containing refrigerant fall under ADR (European Agreement on Transport of Dangerous Goods) regulations. In practical terms for UK engineers, this means:, meeting British quality expectations

• Cylinders must be secured upright in your vehicle
• Valve caps must be fitted during transport
• You need appropriate signage if carrying above threshold quantities
• Storage should be in a well-ventilated area, away from direct heat sources

Leak Detection and Essential Tools for Recovery Work

A refrigerant recovery cylinder is only part of the kit you need. Before recovery, you'll want to identify and fix any leaks — otherwise you're just going to lose the same gas again once you recharge the system. After recovery, checking your cylinder and connections for leaks is basic good practice.

Electronic Leak Detectors

Look, I know some old-school engineers still rely on soap bubbles. And fair enough, bubble testing works for obvious leaks. But for micro-leaks — the kind that cause a system to lose 5-10% charge per year — you need an electronic detector.

The Testo gas leak detector, available for £120.75 from Gaugely, is a brilliant entry point. It's compact, responsive, and at that price, there's no excuse not to have one in your toolkit. Free UK delivery and eco-friendly packaging too, which is a nice touch.

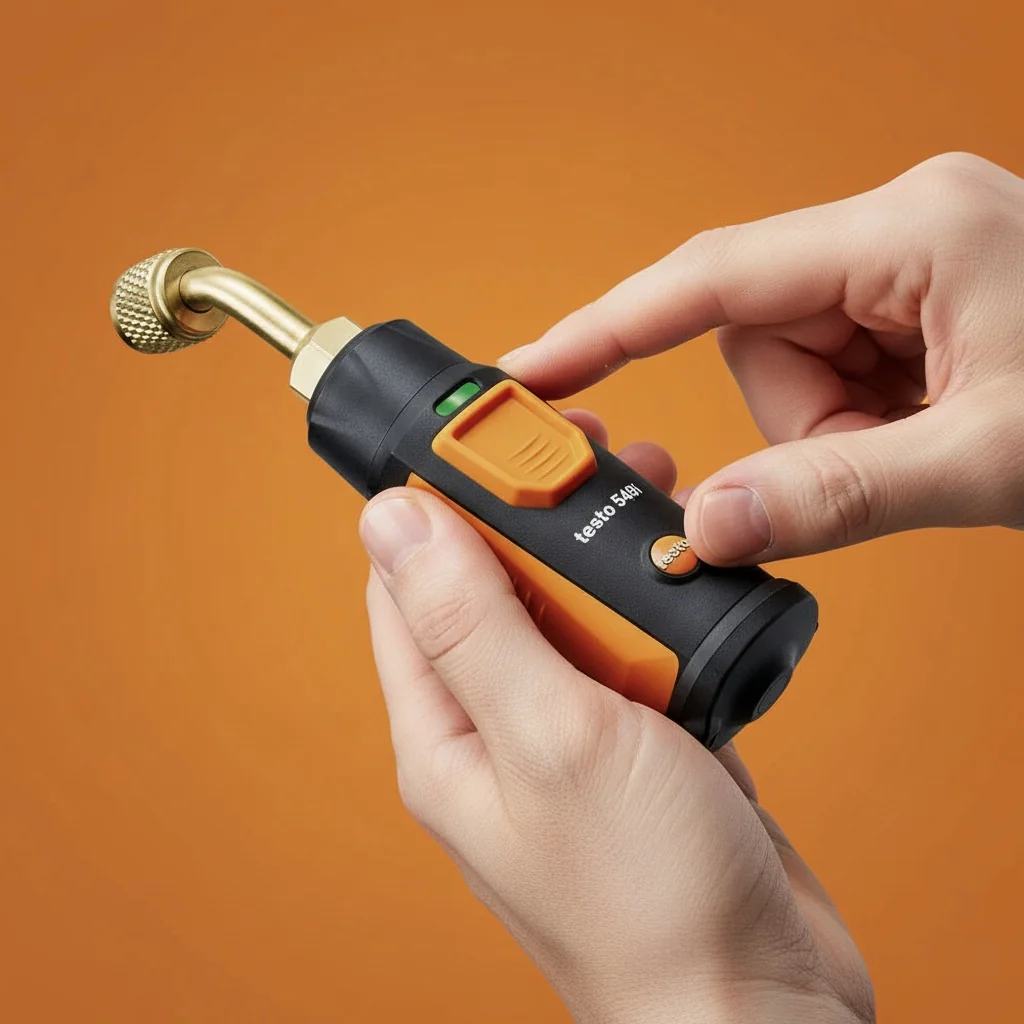

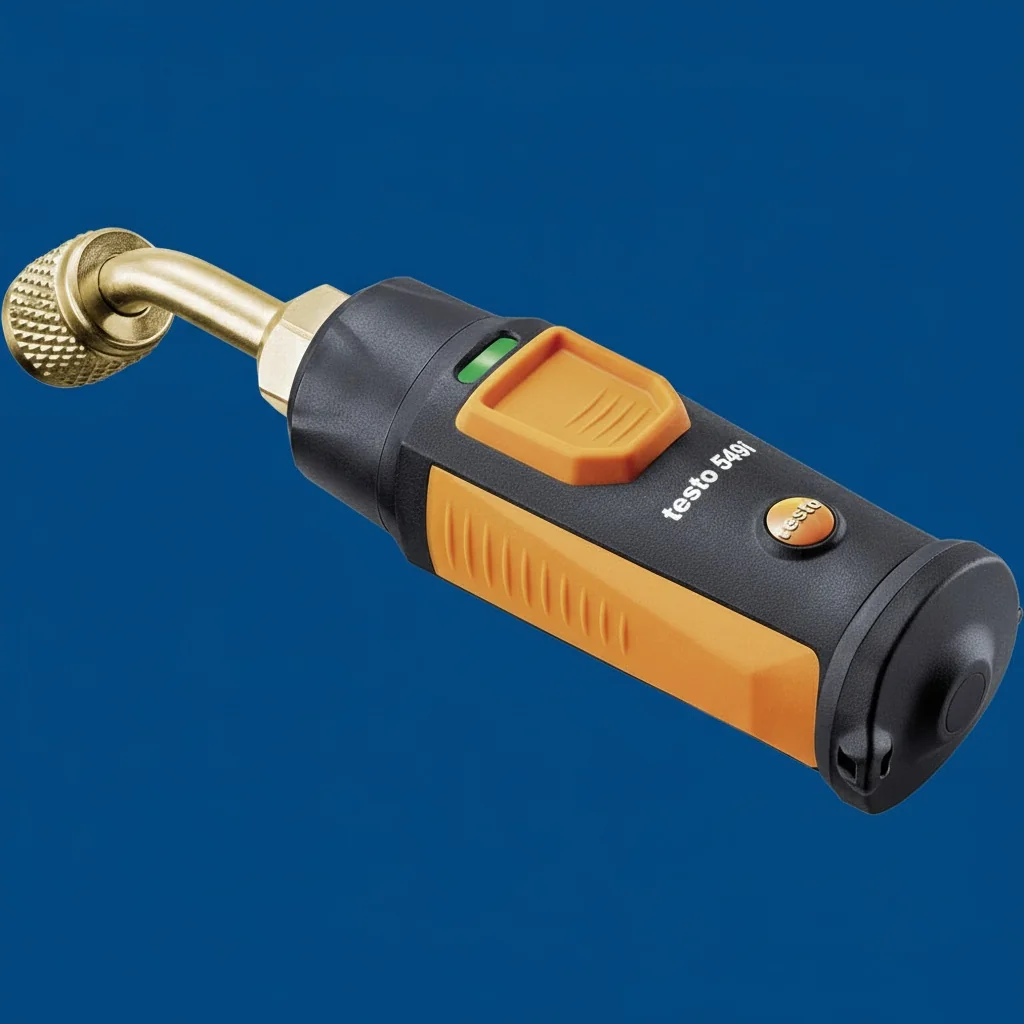

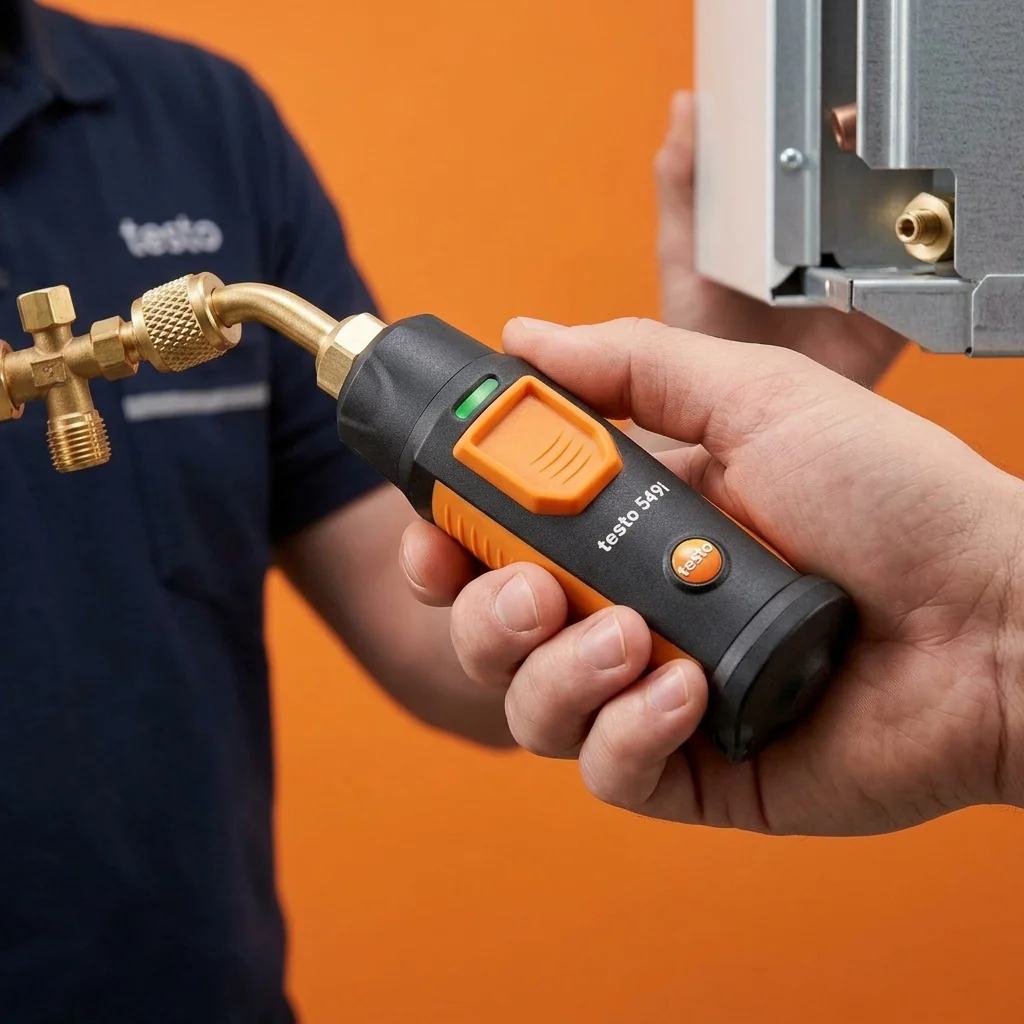

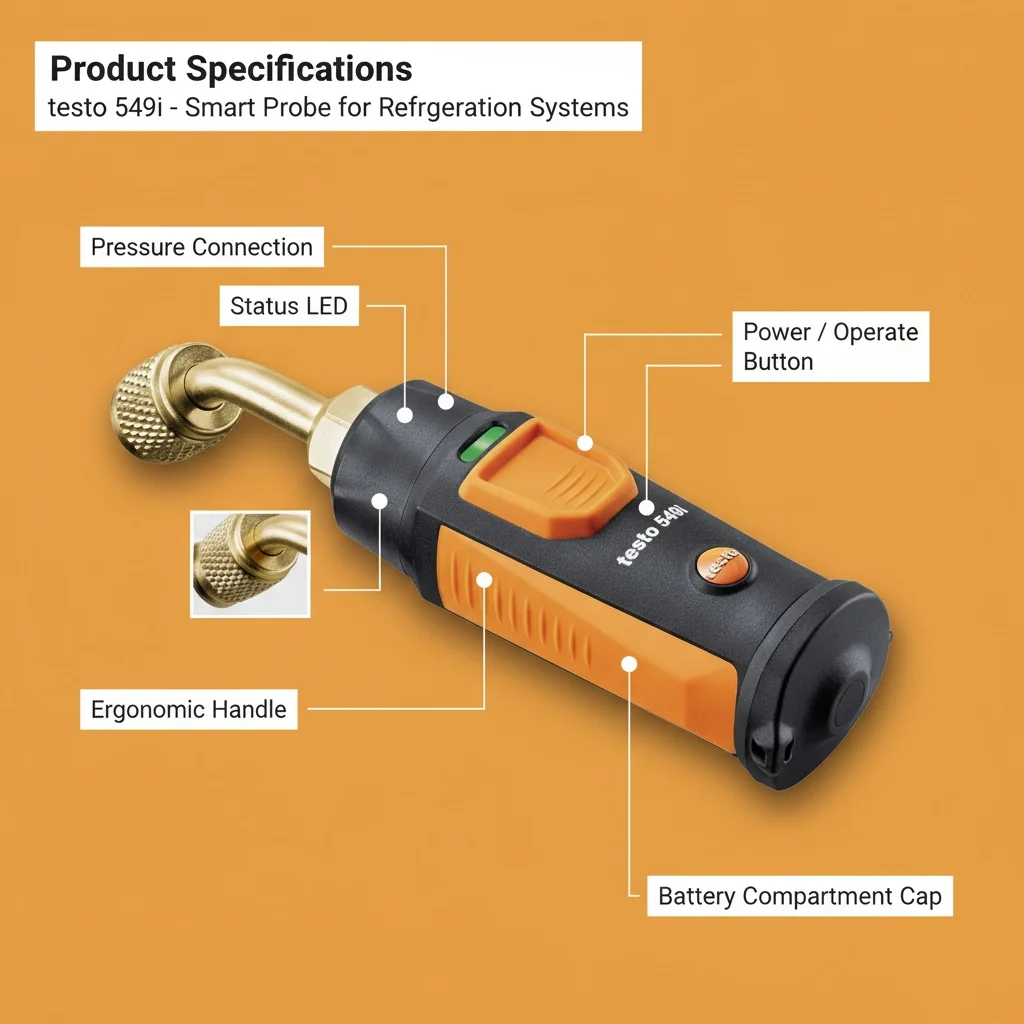

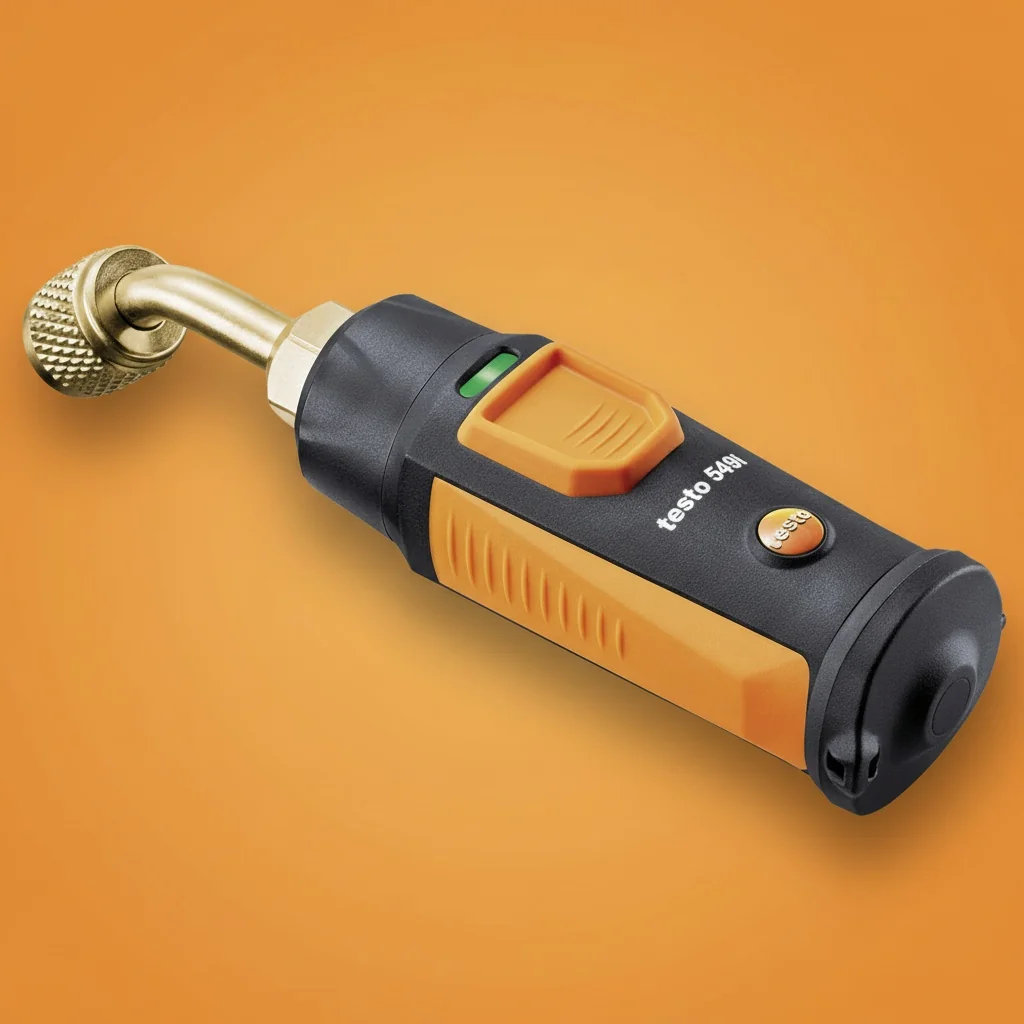

For more advanced diagnostics, Testo and Fieldpiece both offer professional-grade manifold gauges and smart probes that integrate with your phone. I've been using the Testo 549i digital manifold recently, and it's spot on for monitoring pressures during recovery. If you're weighing up options, our Testo 549i vs Fieldpiece comparison breaks it down nicely.

Calibration Matters

Whatever detection or measurement tools you're using, calibration is non-negotiable. Drift happens. A probe that was accurate six months ago might be reading ±2°C off now, and that affects your superheat and subcooling calculations. If you're running Testo smart probes, here's our guide on calibrating them properly.

Weighing Scales

You absolutely need a reliable refrigerant scale. Accuracy of ±5g is the standard you should aim for. Cheaper bathroom scales won't cut it — I've tried, and the inconsistency is maddening. A proper HVAC charging scale with a capacity of at least 50 kg will serve you well across recovery and charging tasks.

Maintenance, Recertification, and When to Replace Your Recovery Cylinder

Recovery cylinders aren't a buy-once-forget-it item. They require periodic inspection and recertification to remain legally compliant and safe to use.

The 5-Year Recertification Rule

Under TPED (Transportable Pressure Equipment Directive) and UK domestic regulations, recovery cylinders must be retested and recertified every 5 years. This involves a hydraulic pressure test, visual inspection of internal and external surfaces, valve replacement if needed, and re-stamping with the new test date.

Recertification typically costs between £25 and £45 per cylinder, depending on the testing facility. Worth it? Absolutely — a new 25-litre cylinder runs £95–£130, so recertification is decent bang for your buck.

Signs Your Cylinder Needs Retiring

• Visible corrosion, dents deeper than 2mm, or bulging
• Damaged or stripped valve threads
• Failed pressure test during recertification
• More than 3 recertification cycles (i.e., over 20 years old) — at this point, just replace it

Day-to-Day Care

Simple stuff, but it makes a difference. Store cylinders upright. Keep them out of direct sunlight. Fit valve caps when not in use. And — this one gets forgotten — purge your recovery machine hoses after each job to prevent cross-contamination between refrigerant types., popular across England

I keep a simple spreadsheet tracking each cylinder's serial number, certification date, and which refrigerant it last held. Takes two minutes to update. Saves a world of hassle when the inspector turns up.

Key Takeaways

• A refrigerant recovery cylinder is a legal requirement for any F-Gas certified engineer performing system servicing, repair, or decommissioning in the UK.
• The 80% fill rule is non-negotiable — exceeding this limit risks catastrophic cylinder failure due to thermal expansion of liquid refrigerant.
• 25-litre cylinders offer the best balance of capacity and portability for most mobile HVAC engineers, handling up to 17.6 kg of R-410A.
• Recertification is required every 5 years and costs £25–£45, significantly cheaper than replacement at £95–£130 for a standard 25L unit.
• Never mix refrigerant types in a single recovery vessel — label every cylinder before use to prevent cross-contamination.
• Pair your recovery setup with reliable leak detection — the Testo gas leak detector at £120.75 from Gaugely is an affordable, effective option for identifying system leaks before and after recovery.
• Stay current with 2026 UK regulations — post-Brexit F-Gas rules continue to evolve, and compliance requires both proper equipment and up-to-date documentation.
