Smart Refrigeration Gauges: A UK Engineer's Guide

Smart refrigeration gauges are wireless pressure probes that replace the dials and hoses of a traditional analogue manifold, streaming live readings to an app on your phone or tablet. For a UK engineer weighing up the switch, the appeal is simple: less kit to haul up a loft ladder, no hoses to purge, and the superheat and subcooling maths done for you on screen. This guide explains how they work, how they compare with analogue sets, and where the Testo 549i buying guide fits in.

What are smart refrigeration gauges?

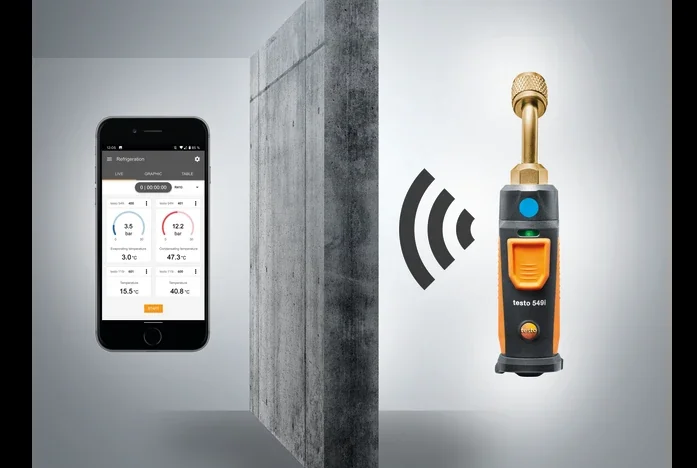

A smart refrigeration gauge is a compact, single-purpose probe that connects directly to a service port and sends the pressure reading over Bluetooth to the free Testo Smart App. There is no dial to read and no hose to fit, so very little or no refrigerant is lost when you connect and disconnect. The app looks up the saturation temperature for your chosen refrigerant and, paired with a clamp thermometer, works out superheat and subcooling automatically.

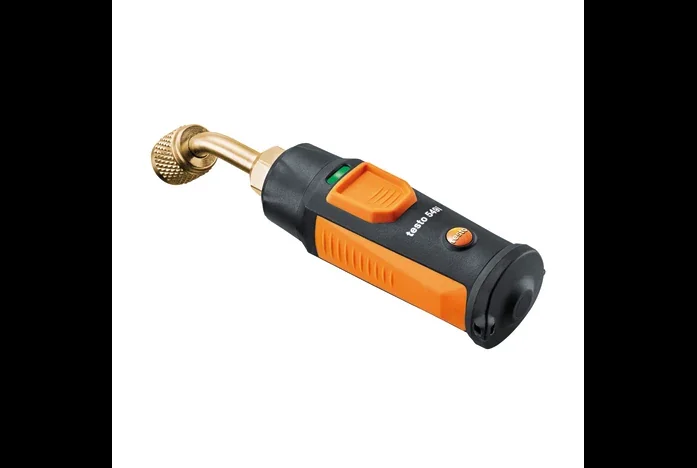

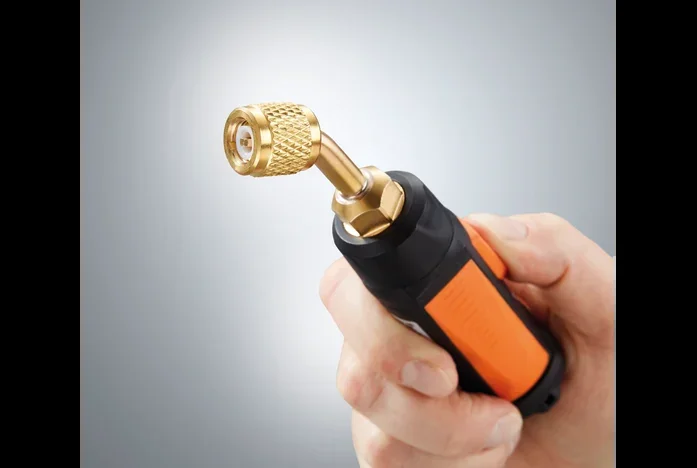

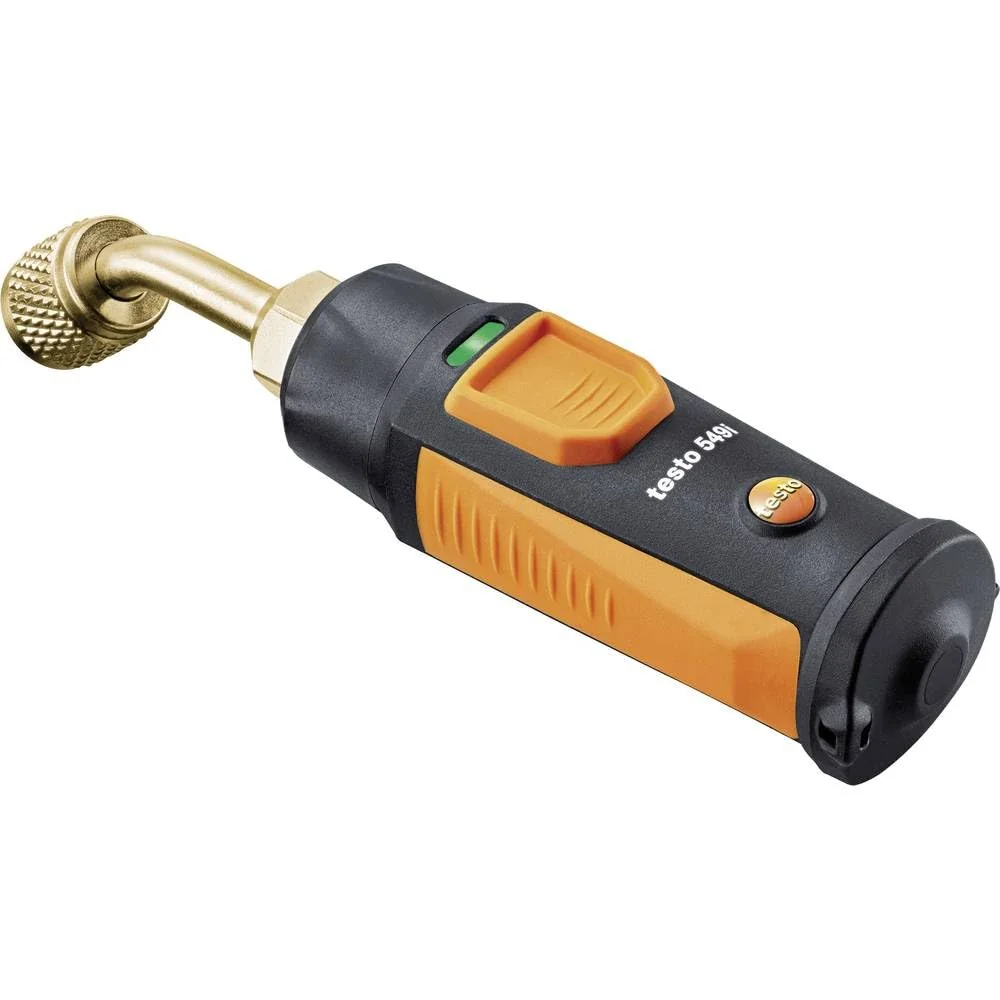

The flagship example we stock is the Testo 549I Bluetooth High-Pressure Gauge Smart Probe. Its published specification is a −1 to 60 bar measuring range, ±0.5% of full-scale accuracy, a 7/16" UNF connection and a Bluetooth range of up to 100 m in open ground (expect considerably less through walls and plant-room steel). It runs on three AAA batteries for roughly 130–150 hours of use.

Digital versus analogue: an honest comparison

If you have run an analogue four-valve manifold for the best part of twenty-five years, the honest truth is that both approaches still work. The difference is speed, record-keeping and eyesight.

Factor	Smart refrigeration gauges	Analogue manifold set
Set-up on site	Clip on and pair — seconds	Fit hoses, purge, level — minutes
Superheat / subcooling	Calculated in the app	PT chart and mental maths
Reading the value	Large digits on your phone	Squinting at a small dial
Record-keeping	Digital export (PDF/Excel)	Pen and paper
Power	Needs charged batteries	None — always ready
Typical UK price	£120.75 (single 549i)	£120–£350 (full set)

That last row is the honest catch: a single smart probe reads one side at a time, so a full analogue set that shows high and low side together is not beaten on every count. Many engineers run two probes for simultaneous high/low readings, or keep the analogue set for exactly that.

Keeping your old manifold as a backup

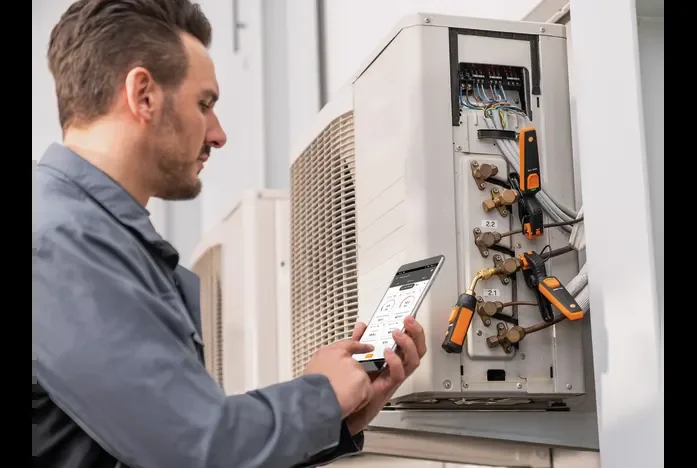

You do not have to bin decades of familiar kit. The low-risk way to go digital is to add a smart probe for day-to-day work while keeping the analogue manifold in the van as a backup — batteries die, phones break, and Bluetooth can be temperamental in a steel plant room. For an engineer who has spent years reading a small dial on a rooftop in fading winter light, the biggest day-one win is simply larger, clearer on-screen digits and having the superheat sum done for you instead of by hand.

What about calibration?

Smart probes drift over time like any instrument. Testo recommends annual calibration for professional use (more often for very high-volume users), and offers a postal calibration service that returns a traceable certificate. One thing to keep straight: a 549i is a pressure probe, not a vacuum gauge — for evacuation you still need a dedicated micron/vacuum gauge. For the day-to-day charging maths, see our superheat subcooling calculator walkthrough.

Is the Testo 549i a sensible starting point?

For most domestic and light-commercial UK work, yes. At £120.75 inc. VAT it sits at the bottom of the analogue price band while adding Bluetooth logging, app-based superheat maths and pocket portability. If you want the full spec breakdown and the "who it is and is not for" verdict, read the Testo 549i buying guide before you spend.

Frequently Asked Questions

Are smart refrigeration gauges as accurate as analogue manifolds?

A quality smart probe such as the Testo 549i is rated at ±0.5% of full scale, which meets or beats a typical analogue dial. Accuracy depends on calibration, so have the probe calibrated annually for professional use.

Do I need to throw away my analogue manifold?

No. The sensible approach is to use a smart probe for daily work and keep your analogue manifold as a van backup for when a battery dies or Bluetooth will not connect in a difficult plant room.

What happens if the Bluetooth drops or the battery dies on site?

You lose the live reading until you reconnect or swap the three AAA batteries. This is exactly why many engineers keep an analogue set as a fallback rather than relying on a single wireless probe for critical work.

How often should smart refrigeration gauges be calibrated?

Testo recommends annual calibration for professional use, and more frequently for very high-volume users or after any physical damage. A postal calibration service returns a traceable certificate.
